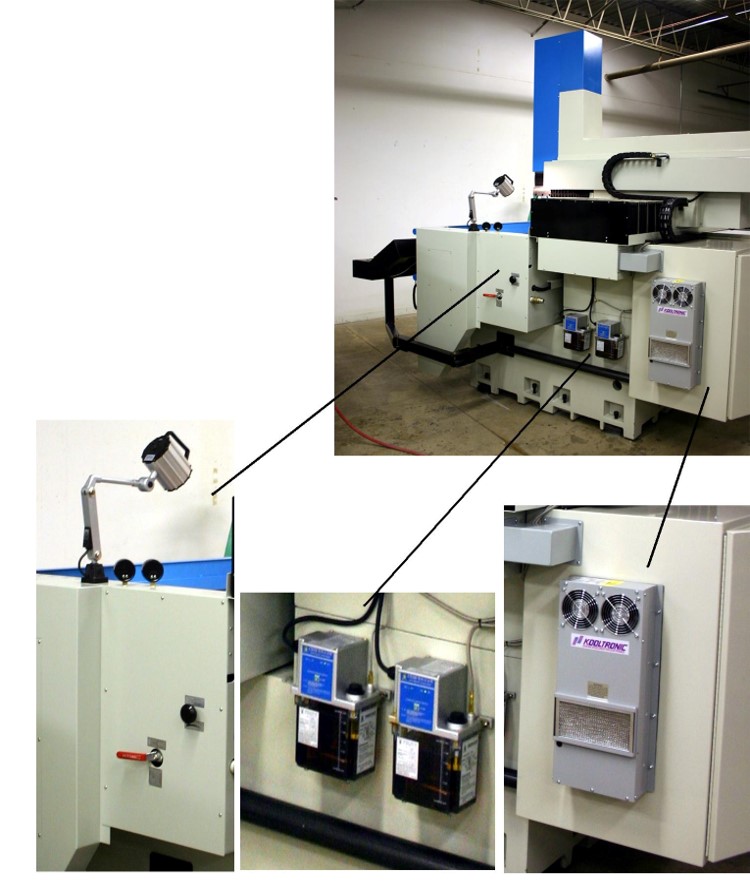

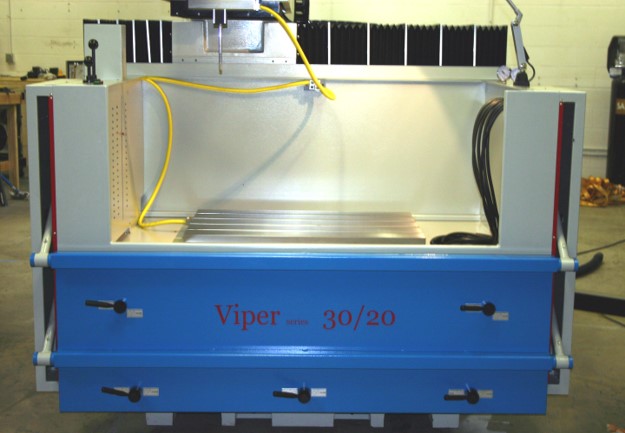

Large Work Tank Envelopes * Work Tank Light
* Pressure/Suction
* Pressure Adjustment
* Automatic X/Y-axis Lubercation.
* Automatic Z-axis Lubercation.
* Air Exchanger / Air Conditioner

Viper Series 30/20

MACHINE TOOL ITEM: UNIT=MM / (KGS): UNIT=IN / (LBS):
Machine Travel (X-axis) 700 27.5
Machine Travel (Y-Axis) 500 19.6
Quill Travel (Z-Axis) 400 15.7
Quill / Table (Z-Axis) 920/1170/1320 36.2/46/51.9
MAX: Electrode Weight 300 660
Work Table: (L x W) 100x600 39.3x23.6
Max: WkPc Weight 4000 8,800
Work Table / T-Sots 4x130 4x5.1
Work Tank (L x W x D) 1500x1020x650 59.0x40.1x25.5
Max: Oil Depth 540 21.2
Machine Weight 5500 12,100
* Pendant option shown.

Viper Series 80/40

MACHINE TOOL ITEM: UNIT=MM / (KGS): UNIT=IN / (LBS):
Machine Travel (X-axis) 2000 78.7
Machine Travel (Y-Axis) 1000 39.3
Quill Travel (Z-Axis) 600 23.6
Quill / Table (Z-Axis) 1250 49.2
MAX: Electrode Weight 500 1100
Work Table: (L x W) 2500x1000 98.4,39.3
Max: WkPc Weight 7000 15,400
Work Table / T-Sots 6x150 6x5.7
Work Tank (L x W x D) 2900x1500x700 114.1x59x27.5
Max: Oil Depth 540 21.2
Machine Weight 12300 27,060

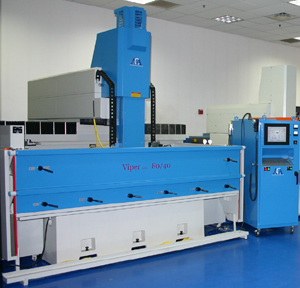

* Stand alone enclosure option shown.
