Electrical Discharge Machines













Machine Overview



    American Controls & Automation, Inc. Viper series EDM machine is a complete turn-key package and the complete package is assembled at our West Chicago facility.  Although the machine casting is imported, ACA specs all Ball-screws and slides that are on the machine.  All other aspects of the machine are handled here.  Everything from electronics to software are handled by ACA allowing for us to have complete control over our system.  This also allows for complete flexibility when meeting our customers needs or wishes.  Please see the complete overview of out system below.

    Head & Shoulders Style Machine:

    Although the Cast Iron is imported, the machines are Mehanite standard certified. Also all of Ball screws and slides are spec'ed by ACA.  All other aspects of the machine such as belts, pulleys, Motors etc. are assembled and wired at ACA's facility.  The head shoulder style machine allows for better control over the cut in a rotated system.  Old C-frame style machines allowed for the tank to move which means the complete tank and all the oil move limiting the speeds at which the machine can control the gap.

    Delta tau's PMAC:

    Our control utilizes the Delta Tua's PMAC motion controller.  The PMAC PCI family is Delta Taus latest version of multi-axis board level machine controllers. Designed to fit in a single PCI slot of a PC as a stand-alone, the PMAC PCI family can control 1- through 32-axis of stepper or servo motors in any combination of axes.  Even thou our base system uses the PMAC PCI version we have the ability to use any of the Delta Tau line of controllers from UMAC to the PC-104 depending on the application.

    Gates Belts/Pulleys:

    Poly Chain is the ultimate in advanced synchronous technology. With increased power capacity and performance it opens up new opportunities in the design of synchronous drives. It can replace existing synchronous drives with a much more compact design and replace roller chain to eliminate virtually all maintenance and costly downtime. Moreover, Poly Chain can be used to supplement or replace gearboxes.

    Brushless AC Servo Motors:

    ACA's standard system comes with the Yaskawa Sigma II line of servo motors which are directly wired into our Flex Pack.

    All Sigma II and LEGEND amplifiers have serial encoder feedback with automatic motor recognition, expansion ports for addition of single-axis controls and network interfaces, separate main and control power connections, scalable encoder retransmission, sine-coded PWM output waveforms, full thermal overload protection of the motor, and UL, CE, and TUV certifications. Where required, Yaskawa amplifiers have built-in regenerative and dynamic brake resistors.

    With the flexibility of our system American Controls & Automation, Inc. can connect to virtually any other brand of servo motors.  This allows for greater flexibility to the end user who has preferred vendors that they use on all their equipment.  For example if you only use Mitsubishi products on all your equipment, we can adapt our system to use Mitsubishi.

    Schneeberger Slides:

  • High rigidity and high load bearing capacities in all directions
  • Quite, smooth running with little pulsation and low friction
  • Speed up to 5 m/s and acceleration up to 100 m/s
  • Great variety of carriage and rail types for a broad range of applications
  • Four different accuracy classes
  • Three different preload classes
  • Carriage and rail types for the attachment from above and from below
  • Single piece rail
  • Long service life
  • Easy and cost saving maintenance
  • Wide scope of accessories and options
  • Different coatings for corrosion protection
  • Integrated length measuring system available
  • Integrated rack as an option

Viper Series 30/20





    MACHINE TOOL ITEM:

    UNIT=MM / (KG):

    UNIT=IN / (LBS):







    MACHINE TRAVEL (X-AXIS)

    700

    27.5

    MACHINE TRAVEL (Y-AXIS)

    500

    19.6

    QUILL TRAVEL (Z-AXIS)

    400

    15.7

    QUILL / TABLE (Z-AXIS)

    920 / 1170 / 1320

    36.2 / 46.0 / 51.9

    MAX: ELECTRODE WEIGHT

    300 (KG)

    660 (LBS)

    WORK TABLE (L x W)

    1000 x 600

    39.3 x 23.6

    MAX: WKPC WEIGHT

    4000 (KG)

    8,800 (LBS)

    WORK TABLE / T-SLOTS

    4 x 130

    4 x 5.1

    WORK TANK (L x W x D)

    1500 x 1020 x 650

    59.0 x 40.1 x 25.5

    MAX: OIL DEPTH

    540

    21.2

    MACHINE WEIGHT

    5500 (KG)

    12,100 (LBS)



    RESERVOIR FILTER TANK SPECIFICATIONS:







    RESERVOIR ITEM:

    UNIT / QUANTITY:

    DESCRIPTION:







    FILTER TANKS

    2

    L-SHAPED

    OIL CAPACITY

    1530 (LITERS)

    404.7 (GALS)

    WEIGHT

    450 (KG)

    990 (LBS)

    FILTER TYPE

    (4) PAPER FILTERS

    CARTRIDGES

    PUMPS

    2

    (1) HP - PUMPS



Viper Series 40/25





    MACHINE TOOL ITEM:

    UNIT=MM / (KG):

    UNIT=IN / (LBS):







    MACHINE TRAVEL (X-AXIS)

    1000

    39.3

    MACHINE TRAVEL (Y-AXIS)

    600

    23.6

    QUILL TRAVEL (Z-AXIS)

    400 / 600

    15.7 / 23.6

    QUILL / TABLE (Z-AXIS)

    900 / 1050 / 1300

    35.4 / 41.3 / 51.1

    MAX: ELECTRODE WEIGHT

    300 (KG)

    660 (LBS)

    WORK TABLE (L x W)

    1200 x 800

    47.2 x 31.4

    MAX: WKPC WEIGHT

    5000 (KG)

    11,000 (LBS)

    WORK TABLE / T-SLOTS

    6 x 130

    6 x 5.1

    WORK TANK (L x W x D)

    1845 x 1100 x 650

    72.6 x 43.3 x 25.5

    MAX: OIL DEPTH

    540

    21.2

    MACHINE WEIGHT

    7000 (KG)

    15,400 (LBS)



    RESERVOIR FILTER TANK SPECIFICATIONS:







    RESERVOIR ITEM:

    UNIT / QUANTITY:

    DESCRIPTION:







    FILTER TANKS

    2

    L-SHAPED

    OIL CAPACITY

    1960 (LITERS)

    518.5 (GALS)

    WEIGHT

    550 (KG)

    1,210 (LBS)

    FILTER TYPE

    (4) PAPER FILTERS

    CARTRIDGES

    PUMPS

    2

    (1) & (2) HP - PUMPS



Viper Series 50/30





    MACHINE TOOL ITEM:

    UNIT=MM / (KG):

    UNIT=IN / (LBS):







    MACHINE TRAVEL (X-AXIS)

    1300

    51.1

    MACHINE TRAVEL (Y-AXIS)

    700

    27.5

    QUILL TRAVEL (Z-AXIS)

    450 / 600

    17.7 / 23.6

    QUILL / TABLE (Z-AXIS)

    1130 / 1280 / 1430

    44.4 / 50.3 / 56.2

    MAX: ELECTRODE WEIGHT

    500 (KG)

    1,100 (LBS)

    WORK TABLE (L x W)

    1400 x 900

    55.1 x 35.4

    MAX: WKPC WEIGHT

    5000 (KG)

    11,000 (LBS)

    WORK TABLE / T-SLOTS

    6 x 145

    6 x 5.7

    WORK TANK (L x W x D)

    2080 x 1270 x 700

    81.8 x 50.0 x 27.5

    MAX: OIL DEPTH

    540

    21.2

    MACHINE WEIGHT

    8400 (KG)

    18,480 (LBS)



    RESERVOIR FILTER TANK SPECIFICATIONS:









    RESERVOIR ITEM:

    UNIT / QUANTITY:



    DESCRIPTION:









    FILTER TANKS

    2



    RECTANGULAR

    TANK DIMENSIONS:

    LENGTH:

    WIDTH:

    HEIGHT:

    TANK #1 (MM)

    2550

    1200

    465

    TANK #1 (IN)

    100.4

    47.2

    18.3

    TANK #2 (MM)

    1800

    1150

    465

    TANK #2 (IN)

    70.8

    45.2

    18.3









    OIL CAPACITY

    2200 (LITERS)



    582 (GALS)

    WEIGHT

    1000 (KG)



    2200 (LBS)

    FILTER TYPE

    (4) PAPER FILTERS



    CARTRIDGES

    PUMPS

    2



    (1) & (2) HP - PUMPS



Viper Series 80/40





    MACHINE TOOL ITEM:

    UNIT=MM / (KG):

    UNIT=IN / (LBS):







    MACHINE TRAVEL (X-AXIS)

    2000

    78.7

    MACHINE TRAVEL (Y-AXIS)

    1000

    39.3

    QUILL TRAVEL (Z-AXIS)

    600

    23.6

    QUILL / TABLE (Z-AXIS)

    1250

    49.2

    MAX: ELECTRODE WEIGHT

    500 (KG)

    1,100 (LBS)

    WORK TABLE (L x W)

    2000 x 1000

    78.7 x 39.3

    MAX: WKPC WEIGHT

    7000 (KG)

    15,400 (LBS)

    WORK TABLE / T-SLOTS

    6 x 147

    6 x 5.7

    WORK TANK (L x W x D)

    2900 x 1500 x 700

    114.1 x 59.0 x 27.5

    MAX: OIL DEPTH

    540

    21.2

    MACHINE WEIGHT

    12300 (KG)

    27,060 (LBS)



Viper Series 100/40





    MACHINE TOOL ITEM:

    UNIT=MM / (KG):

    UNIT=IN / (LBS):







    MACHINE TRAVEL (X-AXIS)

    2500

    98.4

    MACHINE TRAVEL (Y-AXIS)

    1000

    39.3

    QUILL TRAVEL (Z-AXIS)

    600

    23.6

    QUILL / TABLE (Z-AXIS)

    1500

    59.0

    MAX: ELECTRODE WEIGHT

    500 (KG)

    1,100 (LBS)

    WORK TABLE (L x W)

    2500 x 1000

    98.4 x 39.3

    MAX: WKPC WEIGHT

    10000 (KG)

    22,000 (LBS)

    WORK TABLE / T-SLOTS

    6 x 147

    6 x 5.7

    WORK TANK (L x W x D)

    3400 x 1555 x 700

    133.8 x 61.2 x 27.5

    MAX: OIL DEPTH

    540

    21.2

    MACHINE WEIGHT

    18200 (KG)

    40,040 (LBS)



EDM Retrofit Packages



    Do not throw away your good machine base just because its controller failed!

    In this economic times, you need to find a way to save money and be productive.

    We could custom retrofit your old Elox, Cincinati, Xermac, Ingersol & other  EDMs*. We will retrofit your controller with user friendly Windows based software, Industrial computer, and high-tech electronic gap processor. We could also provide interface to your old power supplies** as long as it is in good working conditions.

    Give us a chance to quote and find out how Retrofit could work for you.

Manual EDM Power Supplies



    Power supply giving troubles lately? Having trouble repairing them due to obsoleted parts?

    We have from 60 Amps to 300 Amps (Peak) stand alone 'Roll up Enclosure' Manual power supplies. It is designed to replace Elox and Xermac power supplies where you simply roll it up and start with identically matched amphenol connectors.

    We also offer Custom OEM power supplies for sinker EDM as well as for Fast Hole (Hole Drill) EDMs.

    What ever your Power Supply needs are.... We are here to serve you.  Contact us now!

EDM Flame Responder (EDM Flame Sensor FS-1000)



    Detect EDM Flame flare-ups early and Stop the EDM Cycle.

    Most EDM fires start during unattended operation and you need to cut the source of fire which is EDM Cutting Cycle. Early Flame detection and use of fire extinguisher is only way to prevent further spread of EDM oil fire.

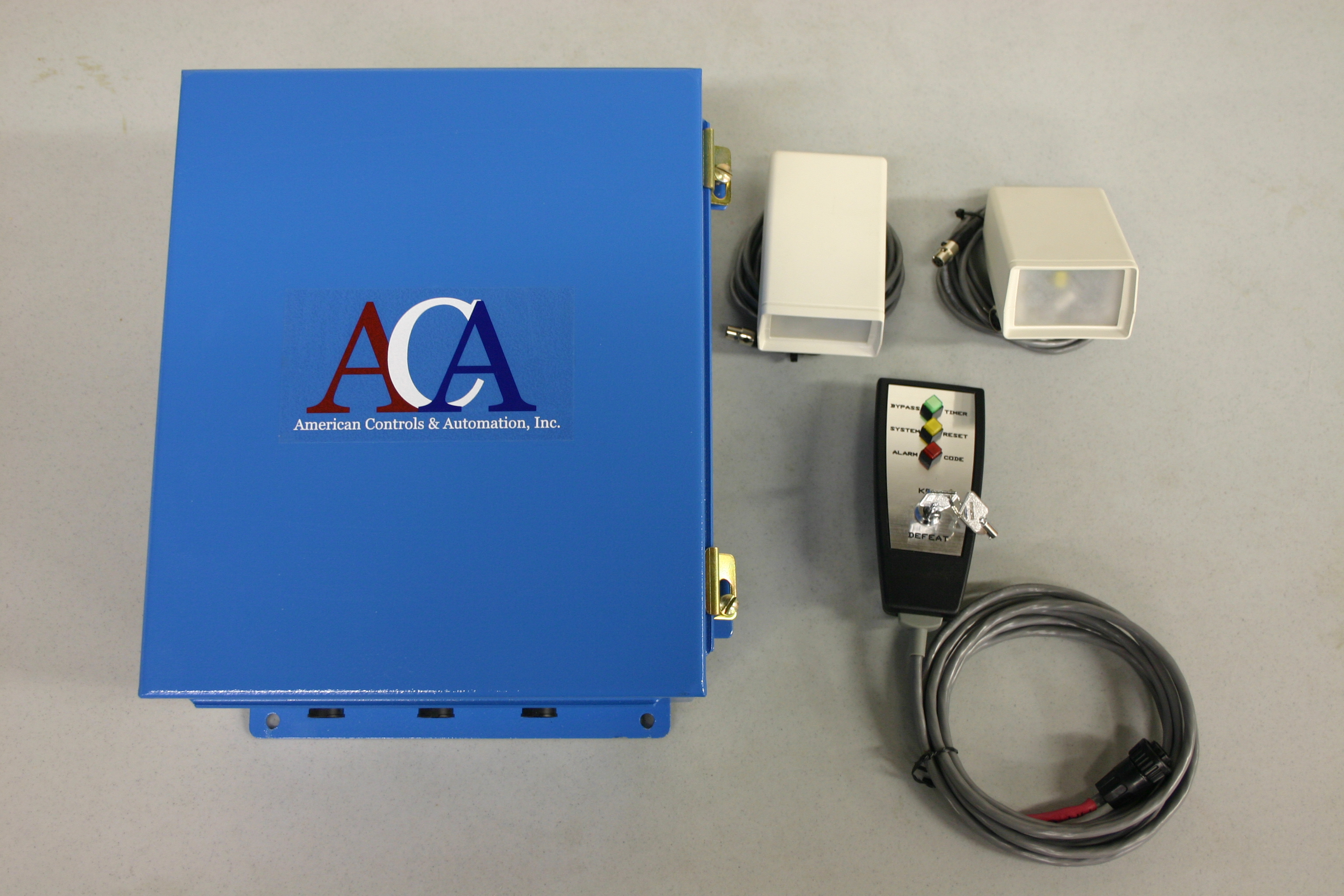

    We offer EDM Flame Sensor FS-1000 sytem that will detect EDM flames and cut EDM cycle.

    This sytem could be ordered as an option for new machine or separate  unit for your current existing machine. This easy to install system comes with 2 sensors, base unit, and wired remote control with installation manual.
